LCK6106EVGRA Electric City Bus

Features

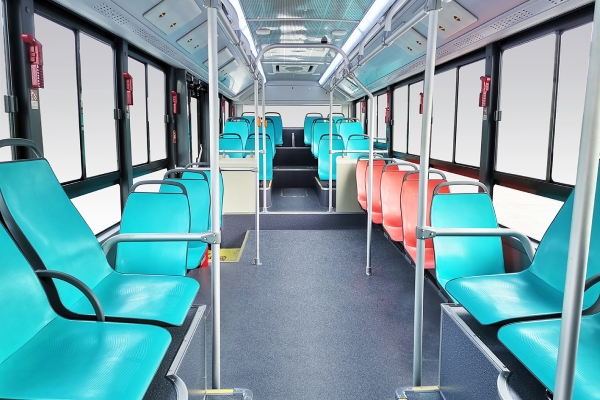

A pure electric bus architecture optimized for high-density urban public transportation. The electric vehicle features upgraded body structure and high-voltage control architecture, with optimized standing and seating layouts to balance higher passenger capacity and total cost of ownership (TCO) efficiency throughout the vehicle lifecycle.
Equipped with a high-safety, long-life power battery system, the vehicle features a precisely tuned electric drive system for urban bus stop-and-go operating conditions, providing smooth power delivery and reducing energy consumption per 100 km.

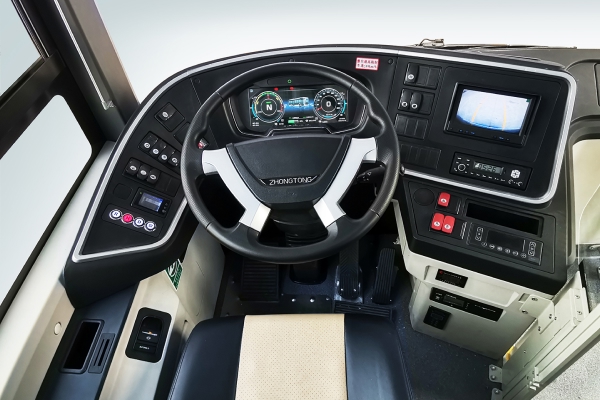

Features a wrap-around ergonomic dashboard and a digitalized driver area. Optional configurations include L2-level advanced driver-assistance system(ADAS), intelligent central control system, and 360° surround-view monitoring system, enhancing driving comfort, intelligence, and safety.

Specifications

LWH (mm)	1050025503265
Battery capacity (kWh)	CATL 310.66
Drive motor	Permanent-magnet synchronous motor
Gross weight (kg)	18500
Front/Rear suspension (mm)	2350/2350
Wheelbase (mm)	5800
Structure	Full monocoque structure
Max. Speed (km/h)	69
Suspension	Air suspension
Axle (T)	Front axle 7.5, Rear axle 11
Capacity (seats)	70
Max. Power (kW)	143
Brake	Front disc brakes / Rear disc brakes
